• the eccentric hoops. This it did perfectly, as the change of position of the small shaft occurred at the exact time when the cut was at its termination, -- that being the correct moment to give the tool "the feed, or advance for the taking of the next cut. The saving, in respect to time, was 10 to 1 in comparison with the same amount of work done by hand labour; while the "truth" or correctness of the work done by this handy little application of the turning-lathe was absolutely perfect I have been the more particular in my allusion to this contrivance, as it is applicable to any lathe, and can perform work which no lathe without it can accomplish. The unceasing industry of such machines is no small addition to their attractions, in respect to the production of unquestionably accurate work.
• The chief novelty in this swivel joint is the manner in which the packing of the joints is completely enclosed, thereby rendering them perfectly and permanently watertight.
• If a Fan be constructed on this common-sense principle, we shall secure the maximum of blast from the minimum of driving power. And not only so; but the humming sound -- so disagreeable an accompaniment to the action of the Fans (being caused by the successive sudden escape of the air from each compartment as it comes opposite the space where it can discharge its confined block of air) -- will be avoided. When the outer case of a Fan is formed on the expanding or spiral principle, as above described, all these important advantages will attend its use. As the inward current of air rushes in at the circular openings on each side of the Fan-case, and would thus oppose each other if there was a free communication between them, this is effectually obviated by forming the rotating portion of the fan by a disc of iron plate, which prevents the opposite in-rushing currents from interfering with each other, and at the same time supplies a most substantial means of fastening the blades, as they are conveniently riveted to this central disc. On the whole, this arrangement of machinery supplies a most effective "Noiseless Blowing Fan."

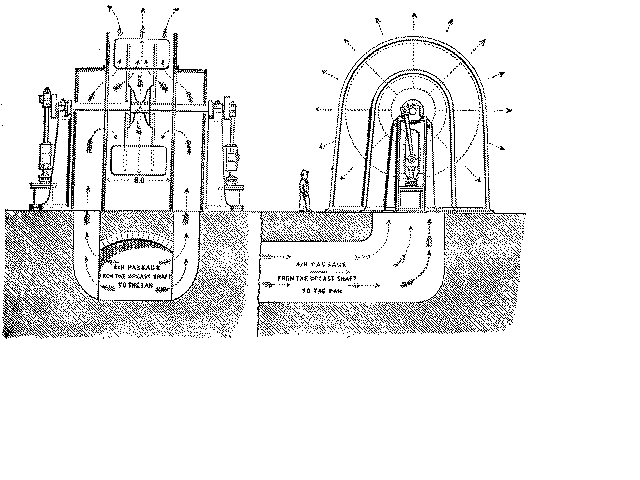

A direct Action "Suction" Fan for the Ventilation of Coal-Mines.

The frequency of disastrous colliery explosions induced me to give my attention to an improved method for ventilating coal mines. The practice then was to employ a furnace, placed at the bottom of the upcast shaft of the coal-pit, to produce the necessary ventilation. This practice was highly riskful. It was dangerous as well as ineffective. It was also liable to total destruction when an explosion occurred, and the means of ventilation were thus lost when it was most urgently required. The ventilation of mines by a current of air forced by a Fan into the workings, had been proposed by a German named George Agricola, as far back as 1621. The arrangement is found figured in his work entitled De Re Metalicat, p. 162. But in all cases in which this system of forcing air through the workings and passages of a mine has been tried, it has invariably been found unsuccessful as a means of ventilation.

As all rotative Blowing Fans draw in the air at their centres, and expel it at their circumference, it occurred to me that if we were to make a communication between the upcast shaft of the mine and the centre or suctional part of the Fan closing the top of the upcast shaft, a Fan so arranged would draw out the foul air from the mine, and allow the fresh air to descend by the downcast shaft, and so traverse the workings. And as a Suction Fan so placed would be on the surface of the ground, and quite out of the way of any risk of injury -- being open to view and inspection at all times -- we should thus have an effective and trustworthy means for thorough ventilation.

•
• Having communicated the design for my Direct Action Suction Fan for coal-pit ventilation to the Earl Fitzwilliam, through his agent Mr. Hartop, in 1850, his lordship was so much pleased with it that I received an order for one of 14 feet diameter, for the purpose of ventilating; one of his largest coalpits. I arranged the steam-engine which gave motion to the large Fan, so as to be a part of it; and by placing the crank of the engine on the end of the Fan-shaft, the engine transferred its power to it in the most simple and direct manner. The high satisfaction which this Ventilating Fan gave to the Earl and to all connected with his coal-mines, led to my receiving orders for several of them.

I took out no patent for the invention, but sent drawings and descriptions to all whom I knew to be interested in coalmine ventilation. I read a paper on the subject, and exhibited the necessary drawings, at the
